Neodymium Bar (Samarium-cobalt) Magnet / Magnetic Bar

Remove metallic foreign bodies by the strong magnetic force of Neodymium.
We propose the optimum specification for the customer's application.

Strong Neodymium magnets remove any fine iron particles and stainless steel powder generated by wear during the manufacturing process for food, medicines, and chemicals, etc. We provide high quality bar magnets manufactured in Japan. We can develop custom-specified magnets in addition to the standard sizes or meet your demand for quick delivery.

※We provide Samarium-cobalt magnet bars also for high-temperature processing, so please ask us.

Intended use and model selection of magnet products separated by industry type.

Food	Beverage	Separate stainless steel wear particles and iron oxide in pipe lines after grinding coffee, juice, tea, or powdered milk, etc.
	Meat processing	Separate stainless wear particles from the cutting tools used for meat processing, etc.
	Powdered seasoning	Separate iron or stainless steel wear particles after grinding materials such as pepper, Wasabi, or Furikake etc.
	Liquid seasoning	Separate stainless steel wear particles and iron oxide in pipe lines after producing soy sauce, soup, and miso, etc.
	Confectionery	Separate stainless steel wear particles in pipe lines after grinding cocoa and beans, etc.
	Grain	Separate particles generated by refining grain.
Medicine	Medicine	Separate stainless steel particles generated by pulverizing pharmaceutical materials.
Medicine	Herbal medicine	Separate wear particles of cutting tools generated by cutting herbs.
Cosmetics	Cosmetics related	Separate stainless steel wear particles in pipe lines after preparing powdered materials.
Chemicals	Chemical related	Separate foreign metallic particles from powdered or pellet material in pipe lines of injection molding machines
Chemicals	Rubber related	Separate foreign metallic particles using magnets from recycled rubber, such as steel reinforced tires.
Fertilizer	Fertilizer/Fodder	Separate/remove harmful metallic particles mixed in fertilizer/fodder.
Papermaking	Paper	Separate fragments of nails and bolts from wood chips, and remove metallic foreign particles from production lines for recycled paper.
Glass	Glass factory	Separate iron powder mixed in glass materials and powdered glass.
China	Chinaware	Separate iron powder in chinaware material.

Intended use and model selection of magnet products separated by industry type

Click here for custom-made examples of other Neodymium Magnet related devices.

Inquiry

Please feel free to as us for price, lead time, materials, and application examples.
Inquiry by Telephone or Fax ⇒ Please inquire to the contact below.
Inquiry Online ⇒ Please use the Inquiry Form.

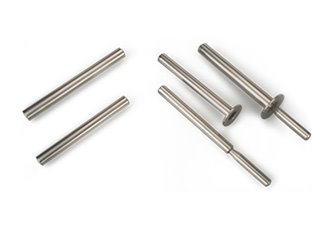

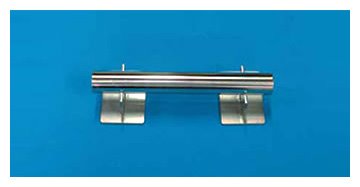

MNMB-B

● It removes fine iron powder and stainless wear particles
from powders or liquids by its strong magnetic force.
● It is optimal for removing foreign metallic particles in the
manufacturing process of food, medicines, and
chemicals, etc.
● It provides a waterproofing effect with the sanitary
specification.

Intended use and model selection of magnet products separated by industry type.

Material : SUS316L / 304

Model	External Diameter x Length (mm)	Maximum Surface Magnetic Flux Density
MNMB-BS10-10	φ20×100	1.0T(10,000G)
MNMB-BS10-15	φ20×150
MNMB-BS10-20	φ20×200
MNMB-BS10-25	φ20×250
MNMB-BS10-30	φ20×300
MNMB-BS10-35	φ20×350
MNMB-BS10-40	φ20×400
MNMB-B10-10	φ25×100
MNMB-B10-15	φ25×150
MNMB-B10-20	φ25×200
MNMB-B10-25	φ25×250
MNMB-B10-30	φ25×300
MNMB-B10-35	φ25×350
MNMB-B10-40	φ25×400
MNMB-B10-50	φ25×500
MNMB-B10-60	φ25×600

Material ： SUS316L

Model	External Diameter x Length (mm)	Maximum Surface Magnetic Flux Density
MNMB-B12-10	φ25×100	1.2T(12,000G)
MNMB-B12-15	φ25×150
MNMB-B12-20	φ25×200
MNMB-B12-25	φ25×250
MNMB-B12-30	φ25×300
MNMB-B12-35	φ25×350
MNMB-B12-40	φ25×400
MNMB-B12-50	φ25×500
MNMB-B12-60	φ25×600

● Operating environment temperature ≦80℃
● It is possible to produce 1.0T(10,000G) or less
● It is possible to produce a heat resistant specification
● It is possible to produce sizes not listed in the size table
● It is possible to add a tap hole

Intended use and model selection of magnet products separated by industry type.

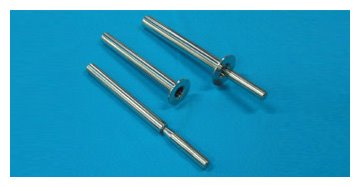

Double Tube Type (with Grip)

● Easy to clean because of the double tube structure

Material ： SUS316L

Model	External Diameter	Length (mm)	Maximum Surface Magnetic Flux Density
MNMB-BW10-15	φ26.2	150	1.0T(10,000G)
MNMB-BW10-20	φ26.2	200
MNMB-BW10-25	φ26.2	250
MNMB-BW10-30	φ26.2	300

Material ： SUS316L、SUS304

Model	External Diameter	Length (mm)	Maximum Surface Magnetic Flux Density
MNMB-BWS07-15	φ22	150	1.0T(10,000G)
MNMB-BWS07-20	φ22	200
MNMB-BWS07-25	φ22	250
MNMB-BWS07-30	φ22	300

● Operating environment temperature ≦80℃
● It is possible to produce 1.0T(10,000G) or less
● It is possible to produce a heat resistant specification
● It is possible to produce sizes not listed in the size table

Intended use and model selection of magnet products separated by industry type

Inquiry

Please feel free to as us for price, lead time, materials, and application examples.
Inquiry by Telephone or Fax ⇒ Please inquire to the contact below.
Inquiry Online ⇒ Please use the Inquiry Form.

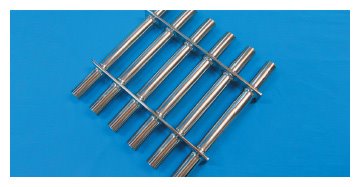

MNMB-H

● It attracts and removes fine iron powder and stainless
steel wear particles as the material is falling down by
placing strong magnets in a grid layout.
● It is optimal for removing foreign metallic particles in the
manufacturing process of food, medicines, and
chemicals, etc.
● It can be used in a bath because of the sanitary
specification.

MNMB-HW (Double Tube)

The double tube structure requires a planning meeting before production.

Intended use and model selection of magnet products separated by industry type.

※It is possible to produce sizes not listed in the size table.

(Unit: mm)

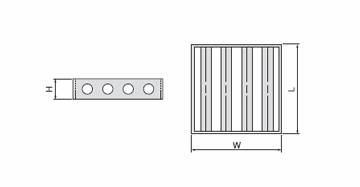

Model	Dimensions			Number	Pipe Diameter	Magnet Frame		Operating Environment Temperature	Maximum Surface Magnetic Flux Density	Remark
Model	W	L	H	Number	Pipe Diameter	Finish	Material	Operating Environment Temperature	Maximum Surface Magnetic Flux Density	Remark
MNMB-H2222	220	220	50	4	φ25 SUS316L SUS304	Buff ♯320	SUS304	≦80℃	1.0T (10,000G)	It is possible to produce a heat resistant specification. It is possible to produce as SUS316 specification.
MNMB-H2227	220	270	50	4
MNMB-H2727	270	270	50	5
MNMB-H2732	270	320	50	5
MNMB-H3232	320	320	50	6
MNMB-H3242	320	420	50	6
MNMB-H4242	420	420	50	8

Model	Dimensions			Number	Pipe Diameter	Magnet Frame		Operating Environment Temperature	Maximum Surface Magnetic Flux Density	Remark
Model	W	L	H	Number	Pipe Diameter	Finish	Material	Operating Environment Temperature	Maximum Surface Magnetic Flux Density	Remark
MNMB-HH2222	220	220	50	4	φ25 SUS316L	Buff ♯320	SUS304	≦80℃	1.2T (12,000G)	It is possible to produce as SUS316 specification.
MNMB-HH2227	220	270	50	4
MNMB-HH2727	270	270	50	5
MNMB-HH2732	270	320	50	5
MNMB-HH3232	320	320	50	6
MNMB-HH3242	320	420	50	6
MNMB-HH4242	420	420	50	8

Model	Dimensions			Number	Pipe Diameter	Magnet Frame		Operating Environment Temperature	Maximum Surface Magnetic Flux Density	Remark
Model	W	L	H	Number	Pipe Diameter	Finish	Material	Operating Environment Temperature	Maximum Surface Magnetic Flux Density	Remark
MNMB-SH2020	200	200	50	4	φ20 SUS316L	Buff ♯320	SUS304	≦80℃	1.0T (10,000G)	It is possible to produce as SUS316 specification.
MNMB-SH2025	200	250	50	4
MNMB-SH2525	250	250	50	5
MNMB-SH2530	250	300	50	5
MNMB-SH3030	300	300	50	6

Intended use and model selection of magnet products separated by industry type

Inquiry

Please feel free to as us for price, lead time, materials, and application examples.
Inquiry by Telephone or Fax ⇒ Please inquire to the contact below.
Inquiry Online ⇒ Please use the Inquiry Form.

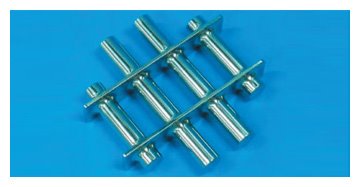

MNMB-K

● It absorbs and removes fine iron powder and stainless steel
wear particles as the material is falling down by placing
strong magnets as a grid.
● It is optimal for removing foreign metallic particles in the
manufacturing process of food, medicines, and chemicals,
etc.
● It can be used in a bath because of the sanitary
specification.
● It possible to design and produce by customizing for an
existing hopper.
● It is possible to produce a two-stage type.

The sanitary finish achieved by our original special welding technique is suitable for the food and medical industries.

Intended use and model selection of magnet products separated by industry type.

※It is possible to produce sizes not listed in the size table.

(Unit: mm)

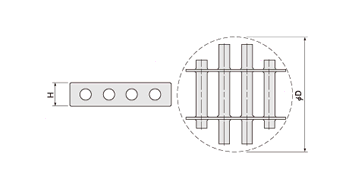

Models	Dimension		Number	Pipe Diameter	Flat Bar		Operating Environment Temperature	Maximum Surface Magnetic Flux Density	Remark
Models	φD	H	Number	Pipe Diameter	Finish	Material	Operating Environment Temperature	Maximum Surface Magnetic Flux Density	Remark
MNMB-M220	φ220	50	4	φ25 SUS316L SUS304	Buff ♯320	SUS304	≦80℃	1.0T (10,000G)	It is possible to produce a heat resistant specification. It is possible to produce as SUS316 specification.
MNMB-M270	φ270	50	5
MNMB-M320	φ320	50	6
MNMB-M370	φ370	50	7
MNMB-M420	φ420	50	8

Models	Dimension		Number	Pipe Diameter	Flat Bar		Operating Environment Temperature	Maximum Surface Magnetic Flux Density	Remark
Models	φD	H	Number	Pipe Diameter	Finish	Material	Operating Environment Temperature	Maximum Surface Magnetic Flux Density	Remark
MNMB-MH220	φ220	50	4	φ25 SUS316L	Buff ♯320	SUS304	≦80℃	1.2T (12,000G)	It is possible to produce as SUS316 specification.
MNMB-MH270	φ270	50	5
MNMB-MH320	φ320	50	6
MNMB-MH370	φ370	50	7
MNMB-MH420	φ420	50	8

Models	Dimension		Number	Pipe Diameter	Flat Bar		Operating Environment Temperature	Maximum Surface Magnetic Flux Density	Remark
Models	φD	H	Number	Pipe Diameter	Finish	Material	Operating Environment Temperature	Maximum Surface Magnetic Flux Density	Remark
MNMB-SM200	φ220	50	4	φ20 SUS316L	Buff ♯320	SUS304	≦80℃	1.0T (10,000G)	It is possible to produce as SUS316 specification.
MNMB-SM250	φ270	50	5
MNMB-SM300	φ320	50	6
MNMB-SM350	φ370	50	7
MNMB-SM400	φ420	50	8

Intended use and model selection of magnet products separated by industry type

Inquiry

Please feel free to as us for price, lead time, materials, and application examples.
Inquiry by Telephone or Fax ⇒ Please inquire to the contact below.
Inquiry Online ⇒ Please use the Inquiry Form.

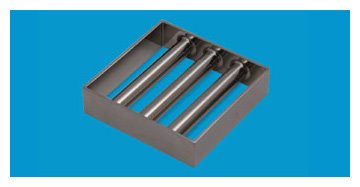

MNMB-M

● It absorbs and removes fine iron powder and stainless
steel wear particles as the material is falling down by
placing strong magnets as a grid.
● It is optimal for removing foreign metallic particles in the
manufacturing process of food, medicines, and chemicals,
etc.
● It can be used in a bath because of the sanitary
specification.
● It possible to design and produce by customizing for an
existing hopper.
● It is possible to produce a two-stage type.

The sanitary finish achieved by our original special welding technique is suitable for the food and medical industries.

Intended use and model selection of magnet products separated by industry type.

※It is possible to produce sizes not listed in the size table.

(Unit: mm)

Model	Dimensions			Number	Pipe Diameter	Magnet Frame		Operating Environment Temperature	Maximum Surface Magnetic Flux Density	Remark
Model	W	L	H	Number	Pipe Diameter	Finish	Material	Operating Environment Temperature	Maximum Surface Magnetic Flux Density	Remark
MNMB-K2020	200	200	50	4	φ25 SUS316L SUS304	Buff ♯320	SUS304	≦80℃	1.0T (10,000G)	It is possible to produce a heat resistant specification. It is possible to produce as SUS316 specification.
MNMB-K2025	200	250	50	4
MNMB-K2525	250	250	50	5
MNMB-K2530	250	300	50	5
MNMB-K3030	300	300	50	6
MNMB-K3040	300	400	50	6
MNMB-K4040	400	400	50	8

Model	Dimensions			Number	Pipe Diameter	Magnet Frame		Operating Environment Temperature	Maximum Surface Magnetic Flux Density	Remark
Model	W	L	H	Number	Pipe Diameter	Finish	Material	Operating Environment Temperature	Maximum Surface Magnetic Flux Density	Remark
MNMB-KH2020	200	200	50	4	φ25 SUS316L	Buff ♯320	SUS304	≦80℃	1.2T (12,000G)	It is possible to produce a heat resistant specification. It is possible to produce as SUS316 specification.
MNMB-KH2025	200	250	50	4
MNMB-KH2525	250	250	50	5
MNMB-KH2530	250	300	50	5
MNMB-KH3030	300	300	50	6
MNMB-KH3040	300	400	50	6
MNMB-KH4040	400	400	50	8

Model	Dimensions			Number	Pipe Diameter	Magnet Frame		Operating Environment Temperature	Maximum Surface Magnetic Flux Density	Remark
Model	W	L	H	Number	Pipe Diameter	Finish	Material	Operating Environment Temperature	Maximum Surface Magnetic Flux Density	Remark
MNMB-SKH2020	200	200	50	4	φ20 SUS316L	Buff ♯320	SUS304	≦80℃	1.0T (10,000G)	It is possible to produce as SUS316 specification.
MNMB-SKH2025	200	250	50	4
MNMB-SKH2525	250	250	50	5
MNMB-SKH2530	250	300	50	5
MNMB-SKH3030	300	300	50	6
