Anisotropy Ferrite Rubber Magnet
Achieve the best balance between strong magnetic characteristics and cost!
Suitable for various applications in industry and for miscellaneous goods!
The price of an anisotropy ferrite magnet, which is made by mixing with a bonding material and arranging the force in one direction, is more reasonable compared to a Neodymium magnet.
The magnetic attraction of an Anisotropy ferrite magnet is stronger, so it is suitable for various applications from industrial to miscellaneous goods.
Magnetic Characteristics of an Anisotropy Ferrite Rubber Magnet
This value is the representative value, not the quality assurance value.
| Residual Magnetic Flux Density (Br) | Coercivity (bHc) | Coercivity (iHc) | Maximum Energy Product (BH) max | Magnetizing direction |
|---|---|---|---|---|
| 2198～2460(G) | 1943～2200(Oｅ) | 2600～2880(Oｅ) | 1.1～1.4(MGOe) | One sided multi-pole |
What is inside the（）means the unit

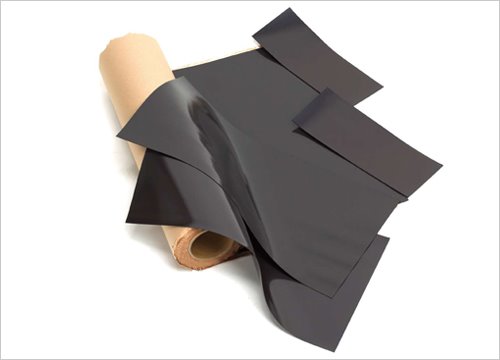

Sold by full-size roll
This value is the representative value, not the quality assurance value.
| Part No. | Thickness*Width*Length (mm) | Attraction (g/c㎡) | Weight (g) |
|---|---|---|---|
| 12ESC | 0.4*520*20 | 27 | 15.20 |
| 12ESC | 0.6*520*20 | 52 | 22.80 |
| 12ESC | 0.8*520*10 | 72 | 15.20 |
| 12ESC | 1.0*520*10 | 92 | 19.00 |
| 12ESC | 1.5*520*10 | 112 | 29.60 |
| 12ESC | 2.0*520*10 | 120 | 38.00 |
| 12ESC | 3.0*520*5 | 146 | 28.50 |
What is inside the（）means the unit
・We can cut to the size you want.
・We also can apply tape on the both sides and PP filming. Please consult us (additional charge).
